In Shepparton, the Goulburn Valley's alluvial terraces hide a specific hazard: collapsible soils. These are typically silty sands or low-density loess that appear stable when dry. But saturate them, and the structure collapses. We've seen it on farms and subdivisions near the Murray Valley Highway. The dry summer crust gives false confidence. Then winter irrigation or a burst main triggers centimetres of sudden settlement. Our evaluation protocol starts with undisturbed block sampling, not just disturbed auger cuttings. We run double-ring infiltration tests on site and paired odometer tests back at the lab. That data shows the collapse potential index. For deep profiles, we combine this with a [granulometría](https://sondajespt.com/granulometria) to detect fines migration, and a [ensayo-cpt](https://sondajespt.com/ensayo-cpt) for continuous stratigraphy. Only then do we model the wetting front.
Saturate a metastable silty sand from Shepparton's river flats, and centimetres of sudden settlement follow within hours, not years.
Method and coverage
Regional considerations
The mistake we see most often in Shepparton is ignoring the collapse potential of the shallow silty sand layer. Builders compact the top 300 mm, pour a slab, and assume it's fine. Then a dry summer followed by a wet autumn saturates the ground. The slab loses support unevenly. Corners drop, interior walls crack, doors jam. The cost of retrofitting a foundation after collapse is easily three to four times the cost of proper evaluation upfront. For a typical 200 m² house near the Goulburn River, the evaluation adds a week to the schedule but prevents a claim that could take years to settle. Our team flags these soils early, often during the desktop study, and we insist on undisturbed sampling before any foundation design.
Standards that apply
AS 1289.6.8.1-2015 Soil collapse potential — odometer method, AS 1726-2017 Geotechnical site investigations, AS 1289.7.1 Standard test method for measurement of collapse potential of soils, Jennings & Knight (1975) classification criteria for collapse severity
Complementary services
Field identification & sampling
Undisturbed block samples from test pits or thin-walled tube samplers. In-situ water content and dry density measured at 0.5 m intervals. We log soil fabric and macro-pores that indicate metastable structure.
Lab odometer collapse testing

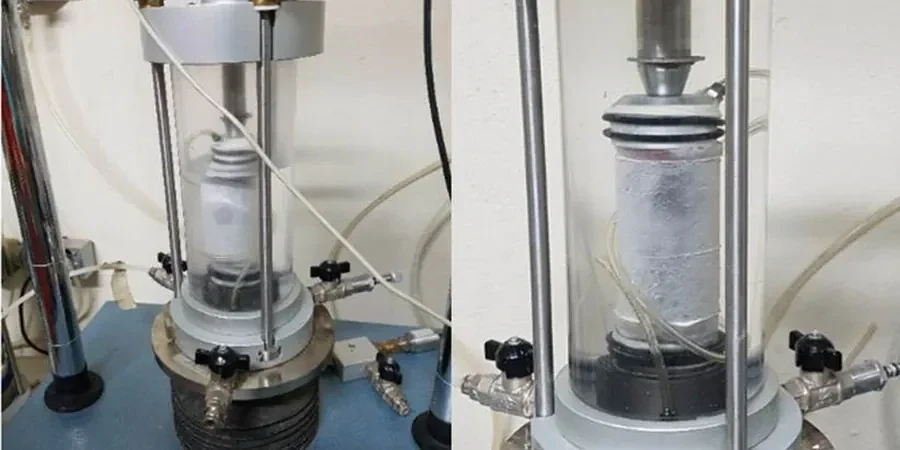

Consolidation tests under incremental loads with controlled wetting at 200 kPa. We report collapse index, time to collapse, and classification per AS 1289.6.8.1. Results within 10 working days.
Foundation risk assessment & mitigation design
We model wetting scenarios (irrigation, stormwater, leak) and recommend foundation solutions: deep piers to stable layer, pre-wetting with surcharge, or drainage improvements. Report includes settlement contours for each scenario.
Typical parameters
Top questions
What exactly is a collapsible soil, and why is it a problem in Shepparton?
A collapsible soil is a metastable material — typically a low-density silt or silty sand — that supports moderate loads when dry but undergoes sudden, large volume reduction when wetted. In Shepparton, the alluvial terraces of the Goulburn River contain these layers, especially after prolonged dry periods. The risk is that a slab foundation can settle several centimetres within hours of a wetting event, causing structural damage.
How do you collect undisturbed samples for collapsible soil evaluation?
We dig test pits to 2–3 m depth and carve out block samples 150 mm x 150 mm x 75 mm, wrapping them in foil and wax to preserve in-situ moisture and density. For deeper layers, we use thin-walled Shelby tubes pushed hydraulically. Disturbed auger samples are not acceptable because they destroy the metastable fabric we need to measure.
What is the typical cost range for a collapsible soil evaluation in Shepparton?
For a standard residential block (around 800 m²), the evaluation costs between AU$1,200 and AU$3,650. This includes two test pits, block sampling, odometer tests on three specimens, and a detailed report with foundation recommendations. Larger commercial sites or deeper profiles incur additional charges for boreholes and extra lab cycles.
Can collapsible soils be treated or stabilised on site?
Yes, but treatment depends on the depth and thickness of the metastable layer. Shallow layers (less than 1.5 m) can be pre-wetted and compacted with a heavy roller, or removed and replaced with engineered fill. Deeper layers require deep foundations (piles or piers) that bypass the collapsible zone, or ground improvement methods such as dynamic compaction or deep soil mixing. Our evaluation includes a cost-benefit analysis of each option for your specific site.
