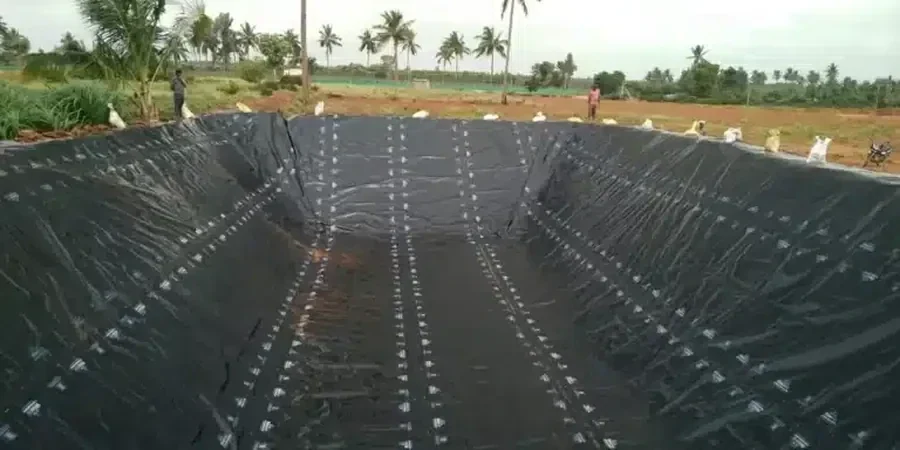

In Shepparton, the Goulburn Valley's clay-rich soils and high water table mean geomembrane specification isn't just about material selection — it's about managing hydrostatic uplift and root penetration from local river red gums. We've seen too many pond liners fail because the design assumed uniform subgrade conditions. A proper specification starts with a site-specific calicatas exploratory to map subgrade variability, then matches the geomembrane type to the actual soil stiffness and drainage regime. The Goulburn River floodplain demands thicker HDPE (1.5 mm minimum) and textured surfaces on slopes steeper than 2H:1V. We also check for local reactive clays that can cause differential settlement underneath the liner.
A 1.5 mm HDPE liner on reactive clay subgrade in Shepparton can experience up to 8% differential strain from seasonal moisture changes.
Method and coverage
- Thickness selection per AS 3700 and GRI-GM13 (1.0–2.0 mm)
- Textured vs. smooth surface based on slope angle and soil cohesion
- Seam strength testing per AS 1289.5.7.1
- Subgrade compaction verification via placa-de-carga to ensure modulus ≥ 30 MPa
Regional considerations
The most common mistake in Shepparton is specifying a smooth geomembrane on slopes without accounting for the area's expansive clay shrink-swell cycles. When the clay dries in summer, it pulls away from the liner, creating voids that concentrate stress. We've documented failures where a 1.0 mm smooth HDPE split at the anchor trench within two years. The fix is simple: specify a textured surface on all slopes steeper than 3H:1V and increase the anchor trench depth to 600 mm. Also, never skip a subgrade proof roll — the Goulburn Valley's old river terraces hide variable compaction.
Process video
Standards that apply
AS 3700:2018 (Geomembranes — Installation and testing), GRI-GM13 (HDPE geomembrane specification standard), AS 1289.5.7.1 (Seam strength for geomembranes)
Complementary services
Geomembrane Material Selection & Testing
We evaluate candidate geomembranes (HDPE, LLDPE, PVC, GCL) against Shepparton's specific conditions: UV index, subgrade reactivity, and chemical exposure from irrigation water or leachate. Testing includes tensile properties (AS 1289), tear resistance (AS 1289), and seam strength (AS 1289.5.7.1). Results are documented in a specification report with recommended thickness, texture, and installation QA/QC.
Subgrade Verification & Installation QA
Before the liner goes down, we verify subgrade compaction and smoothness using plate load tests and laser profiling. During installation, we witness seam preparation, perform non-destructive seam tests (air lance, vacuum box), and collect samples for destructive testing. A final report certifies compliance with your specification and AS 3700.
Typical parameters
Top questions
What thickness of HDPE geomembrane is recommended for Shepparton's climate?
For most applications in Shepparton — irrigation dams, landfill caps, and pond liners — we recommend a minimum of 1.5 mm HDPE. The region's high UV index (average 8.5) and temperature swings (0°C to 45°C) require thicker material to resist thermal stress cracking. For slopes steeper than 2H:1V, textured 1.5 mm is standard.
How much does a geomembrane specification and testing service cost?
Our specification and testing services typically cost between AU$1,040 and AU$2,380, depending on project size, number of seams to test, and whether subgrade verification is included. This covers material selection, laboratory testing of candidate samples, and a comprehensive specification report.
What is the difference between HDPE and LLDPE for Shepparton applications?
HDPE offers higher tensile strength and chemical resistance, making it suitable for landfill liners and industrial ponds. LLDPE is more flexible and conforms better to irregular subgrades, which helps in irrigation dams where subgrade settlement is expected. For Shepparton's reactive clays, LLDPE is often preferred for low-stress applications, while HDPE is mandatory for containment of hazardous liquids.
Do I need a geotextile cushion layer under the geomembrane?
Yes, if your subgrade contains angular gravel, root fragments, or sharp clay clods — common in Shepparton's Goulburn Valley alluvium. A non-woven geotextile (minimum 400 g/m²) prevents puncture during installation and accommodates minor subgrade movement. We always include a cushion layer recommendation in our specification based on the actual subgrade conditions observed during site inspection.
