One mistake we often see from Shepparton builders is assuming all local soils drain the same. The Goulburn Valley floodplain creates a patchwork of clay caps over sandier layers, so a permeability value guessed from a texture chart can be way off. That is why we run laboratory permeability tests on undisturbed and remoulded samples. Before you start any earthworks or drainage design, it pays to cross-check your soil profile with a permeability field test for in-situ context, and then confirm the lab results against a particle size distribution to see how fines content controls flow. Getting the hydraulic conductivity right from the start saves costly rework when the water table rises after winter rains.
Getting the hydraulic conductivity right from the start saves costly rework when the water table rises after winter rains in Shepparton.
Method and coverage
Regional considerations
The dry summers and wet winters in Shepparton create a big contrast in soil moisture. After a dry spell, the topsoil crusts and cracks open preferential flow paths that do not represent the subsoil in its natural state. If you take a sample during summer and run a lab permeability test without re-saturating properly, you get an artificially high result. The risk is a drainage system designed for fast flow that clogs up when the clay swells again in winter. We always ask clients when the sample was taken and whether the site had recent irrigation or rain, so we can adjust the testing protocol accordingly.
Standards that apply
AS 1289.6.7.1 (Falling head method), AS 1289.6.7.1 (Constant head for granular soils), AS 1289.6.7.2 (Constant head in permeameter)
Complementary services

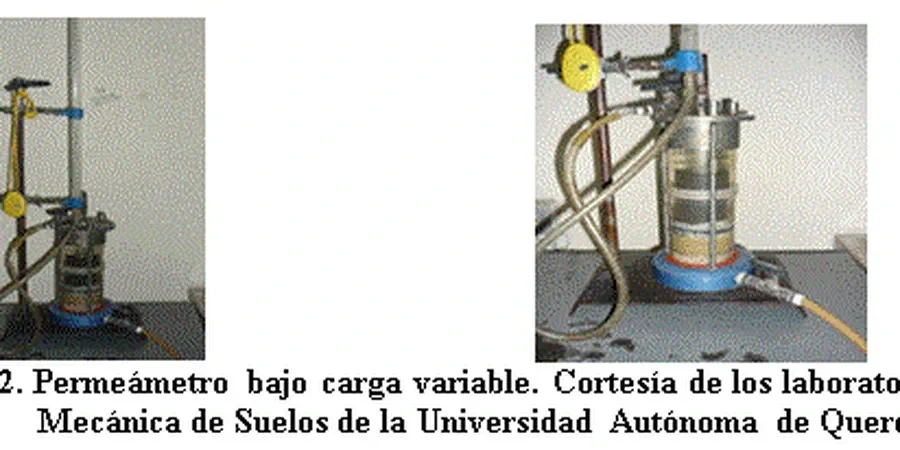

Falling Head Permeability (Clay/Silt)
For the heavy clays common across the Goulburn Valley floodplain, we use triaxial cell setups with back-pressure saturation. The test runs until three consecutive readings show steady flow, typically over 48 to 72 hours.
Constant Head Permeability (Sand/Gravel)
For the sandy lenses and river terrace gravels found near Shepparton, we use rigid-wall permeameters with a constant hydraulic gradient. Results are rapid and suit drainage design for subsoil drains and sports fields.
Compacted Permeability (CBR / Proctor specimens)
When you need to know how compacted fill will behave — for levee banks, road embankments or pond liners — we test remoulded specimens compacted at standard or modified Proctor energy. This tells you if the target density gives acceptably low permeability.
Typical parameters
Top questions
What is the difference between falling head and constant head permeability tests?
Falling head is used for low-permeability soils like clay and silt, where water passes through slowly and the head drops measurably over time. Constant head is for high-permeability soils like sand and gravel, where the head is kept steady and the outflow volume is measured directly. Your geotechnical engineer chooses based on the soil type and the intended use of the data.
How much does a laboratory permeability test cost in Shepparton?
The price range for a standard laboratory permeability test in Shepparton is between AU$730 and AU$940 per sample. This includes specimen preparation, saturation, testing and a report with hydraulic conductivity at 20°C. Costs can vary if you need multiple specimens, compaction beforehand, or rapid turnaround.
Why do I need a lab test if I already have a field infiltration test?
Field infiltration tests measure surface or near-surface behaviour under natural conditions, which is great for drainage design. Lab permeability tests give you controlled data on a specific soil layer, free from macropores or root channels, and are needed for seepage analysis, dam design, and foundation drainage calculations. They complement each other.
How long does it take to get results from a lab permeability test?
For a falling head test on clay, expect 3 to 5 working days because full saturation and steady flow take time. Constant head tests on sand can be done in 1 to 2 days. We can prioritise urgent projects for an additional fee, but the saturation process cannot be rushed if you want reliable numbers.
