Shepparton sits at an elevation of about 114 meters within the Goulburn Valley floodplain, where alluvial clay and silt deposits dominate the upper 3 to 8 meters of the profile. These fine-grained soils, often with plasticity indices above 30, present specific challenges for pavement subgrade design. Effective road geotechnics in Shepparton requires thorough characterization of moisture sensitivity and compaction behavior. The team integrates laboratory CBR testing with field density control, and before defining the subgrade modulus they often run an ensayo Proctor to establish optimum moisture content. This baseline data directly informs the pavement thickness design under Austroads guidelines.
Alluvial clays in Shepparton require careful moisture conditioning: a 2% deviation from OMC can reduce CBR by half.
Method and coverage
Regional considerations
The northern floodplain near the Goulburn River yields soft clays with CBR values below 3%, while the older terrace deposits east of the city centre offer firmer silty sands with CBR between 8% and 12%. Ignoring this spatial variability can lead to differential settlement at pavement transitions. In Shepparton, road geotechnics must account for shallow groundwater tables that rise to within 1.5 meters of the surface after wet winters. This condition reduces effective stress and increases the risk of pumping under traffic loads. A targeted drainage layer and a properly designed capping course are essential to mitigate long-term deformation in the pavement structure.
Process video
Standards that apply
AS 1289 – Methods of testing soils for engineering purposes, Austroads Guide to Pavement Technology – Part 2: Pavement Structural Design, AS 1726 – Geotechnical site investigations, AS 1289.6.1.1 – Standard test method for CBR of laboratory-compacted soils
Complementary services

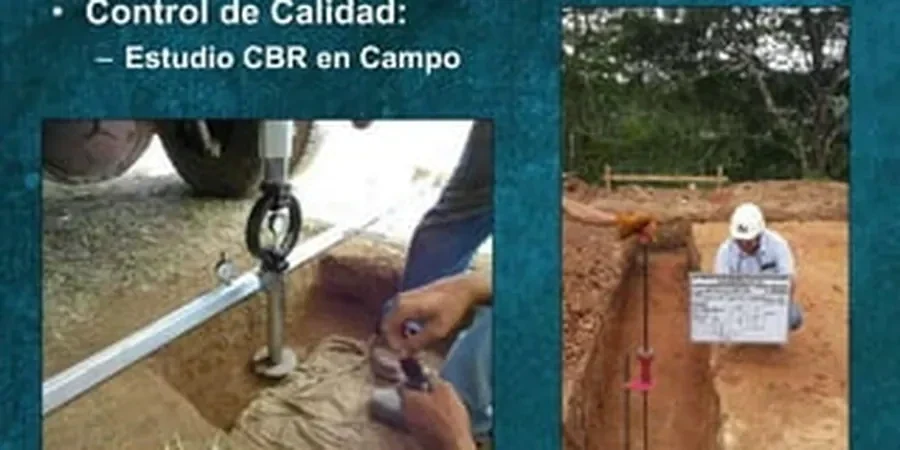

Subgrade Characterization & CBR Assessment
In-situ DCP surveys, soaked and unsoaked CBR testing, and resilient modulus correlation for pavement design inputs.
Pavement Materials Testing & QA
Compaction control, particle size distribution, Atterberg limits, and repeated load triaxial testing for granular and stabilized layers.
Typical parameters
Top questions
What is the typical CBR range for subgrade soils in Shepparton?
CBR values for natural subgrade in Shepparton generally range from 2% to 8% after 4-day soaking, depending on location and clay content. Soils from the floodplain tend toward the lower end, while terrace deposits yield higher values. These data are used in Austroads empirical design charts to determine pavement layer thickness.
How does road geotechnics differ for rural roads vs. urban arterial roads in Shepparton?
Rural roads often encounter higher floodplain clays and require deeper capping layers, while urban arterials involve more controlled fill and higher compaction standards. The investigation frequency also differs: rural alignments may use one test pit per 500 m, whereas urban sections require a pit per 100 m due to utility conflicts and variable subgrade conditions.
Why is moisture conditioning critical for subgrade compaction in this region?
Shepparton clays are highly sensitive to water content — a 2% deviation from OMC can reduce dry density by over 5% and cut CBR in half. Proper moisture conditioning during construction prevents premature pavement distress and ensures that the design modulus is achieved in the field.
