Shepparton sits on the Goulburn Valley floodplain, where the Murray-Darling basin’s clay-rich alluvial soils dominate the subsurface. The region’s seasonal floods and dry summers create a complex moisture regime that directly affects soil volume changes. A soil mechanics study in Shepparton must account for these cyclic wet-dry conditions to predict foundation stability. We combine field sampling with laboratory testing — including limits de Atterberg to classify plasticity — to deliver reliable data for residential and commercial projects alike.
The high-plasticity clays in Shepparton can swell up to 12% under moisture increase — ignoring this shrinks your design margin.
Method and coverage
- Boreholes to 15 m depth with undisturbed sampling
- SPT and CPT profiling for stratigraphic continuity
- Triaxial CU and UU tests per AS 1289.6.4.2
Regional considerations
With a population exceeding 52,000 and ongoing urban expansion into former agricultural land, Shepparton faces a specific risk: uncontrolled fill and undocumented drainage channels. A soil mechanics study in Shepparton must identify buried organic layers and loose fill zones that can cause differential settlement. The region also lies in an area of moderate seismicity per AS/NZS 1170.4, requiring site class assessment (mostly D/E) to evaluate liquefaction potential in the sandier lenses beneath the clay cap.
Standards that apply
AS 1726:2017 – Geotechnical Site Investigations, AS 4678:2002 – Earth Retaining Structures, AS 1289.6.3.1 – Standard Penetration Test, AS 1289.6.4.2 – Consolidated Undrained Triaxial Test
Complementary services
Field Investigation & Sampling

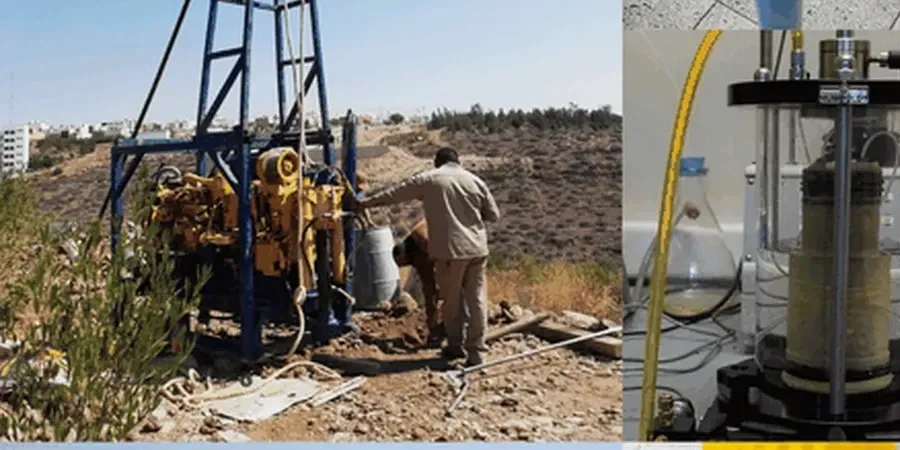

Boreholes to 15 m using track-mounted rigs, undisturbed tube sampling, SPT at 1.5 m intervals and CPT soundings for continuous stratigraphy. Standpipe piezometers installed where water table monitoring is required.
Laboratory Testing & Reporting
Classification (Atterberg limits, particle size distribution), strength (UU and CU triaxial, UCS), consolidation (oedometer) and shrink-swell potential. Final report includes foundation recommendations, settlement estimates and site class per AS 1170.4.
Typical parameters
Top questions
Why do Shepparton clays require a specific soil mechanics study?
Shepparton's high-plasticity clays (CH) undergo significant volume change with moisture variation. A standard desktop assessment cannot capture the shrink-swell index or undrained shear strength needed to design footings that resist cracking and uplift.
What is the typical depth of investigation for a soil mechanics study in Shepparton?
For single-storey residential projects we drill to 6-8 m; for commercial or multi-storey structures boreholes reach 12-15 m. The depth ensures we pass through the active clay zone and encounter the underlying sand-gravel layer.
How does the water table affect foundation design in Shepparton?
The water table fluctuates seasonally — dry summers lower it while irrigation and floods raise it. Our study measures perched and regional water levels to size drainage systems and select footing depths that avoid capillary rise and soil softening.
What does a soil mechanics study in Shepparton cost?
A full study including site investigation, laboratory tests and a geotechnical report typically ranges between AU$4,890 and AU$7,840. The final cost depends on the number of boreholes, required testing and site access conditions.
